Katool ME-LM1100 Single Lock Release Two Post Vehicle Lift 11,000lbs

🔄 30-Day Return Guarantee

We offer a 30-day return or refund guarantee. You may request a refund or exchange within 30 days of receiving your item.

To submit a claim, please contact us at heavylinecontact@gmail.com .

Professional-Grade Clear-Floor Automotive Lift

✔ 30-Day Money-Back Guarantee
✔ Free Shipping to the UK 🇬🇧
✔ Secure SSL-Encrypted Checkout
✔ 24/7 Customer Support

Product Overview

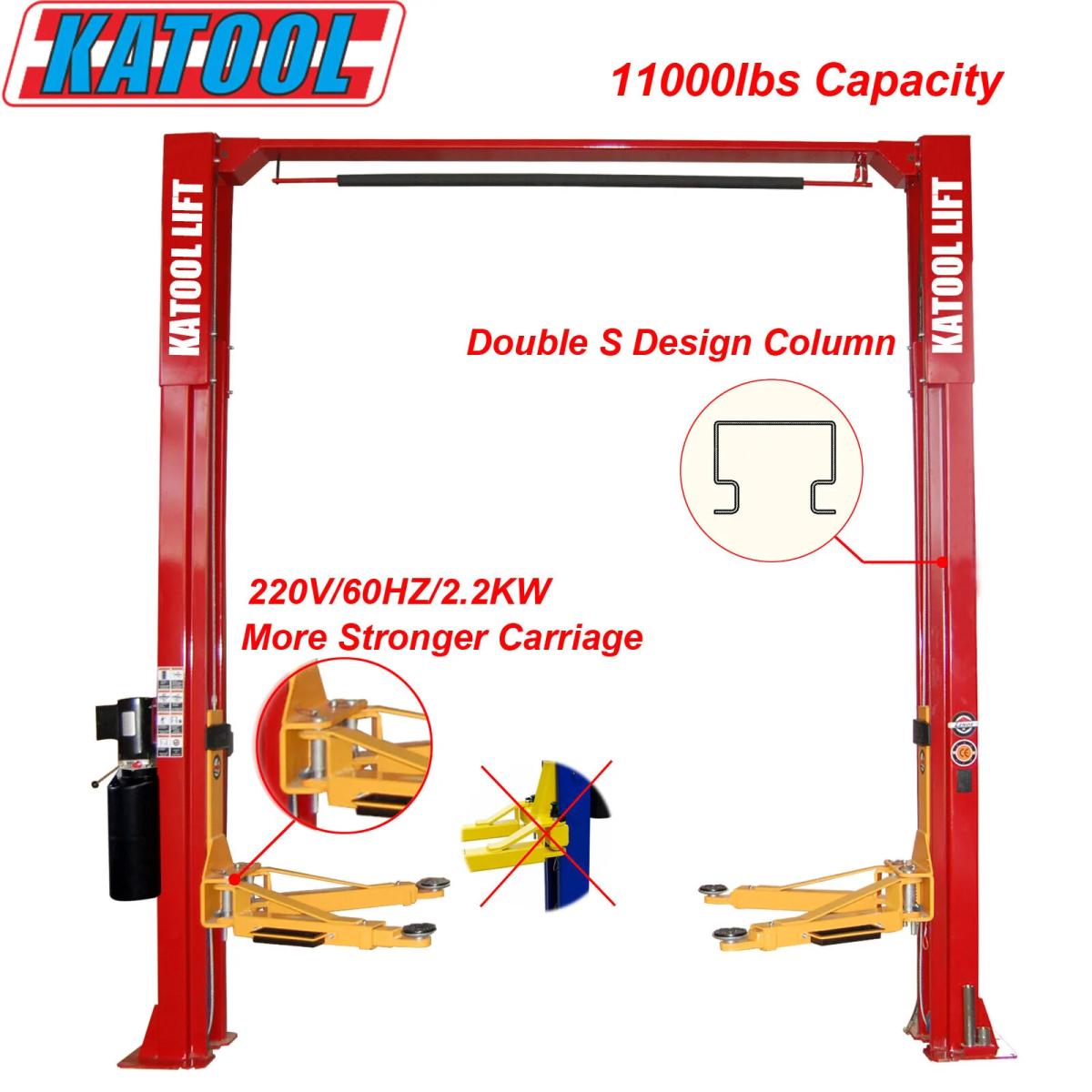

The Katool ME-LM1100 is a professional 11,000 lb two-post vehicle lift engineered for demanding automotive work. Designed with a symmetric clear-floor layout, single-point lock release, and CE-certified safety systems, this lift delivers reliable performance for professional repair shops and serious home garages.

With an impressive 94.5″ drive-through clearance, it provides excellent undercarriage access for maintenance, diagnostics, and repairs on cars, SUVs, and light trucks.

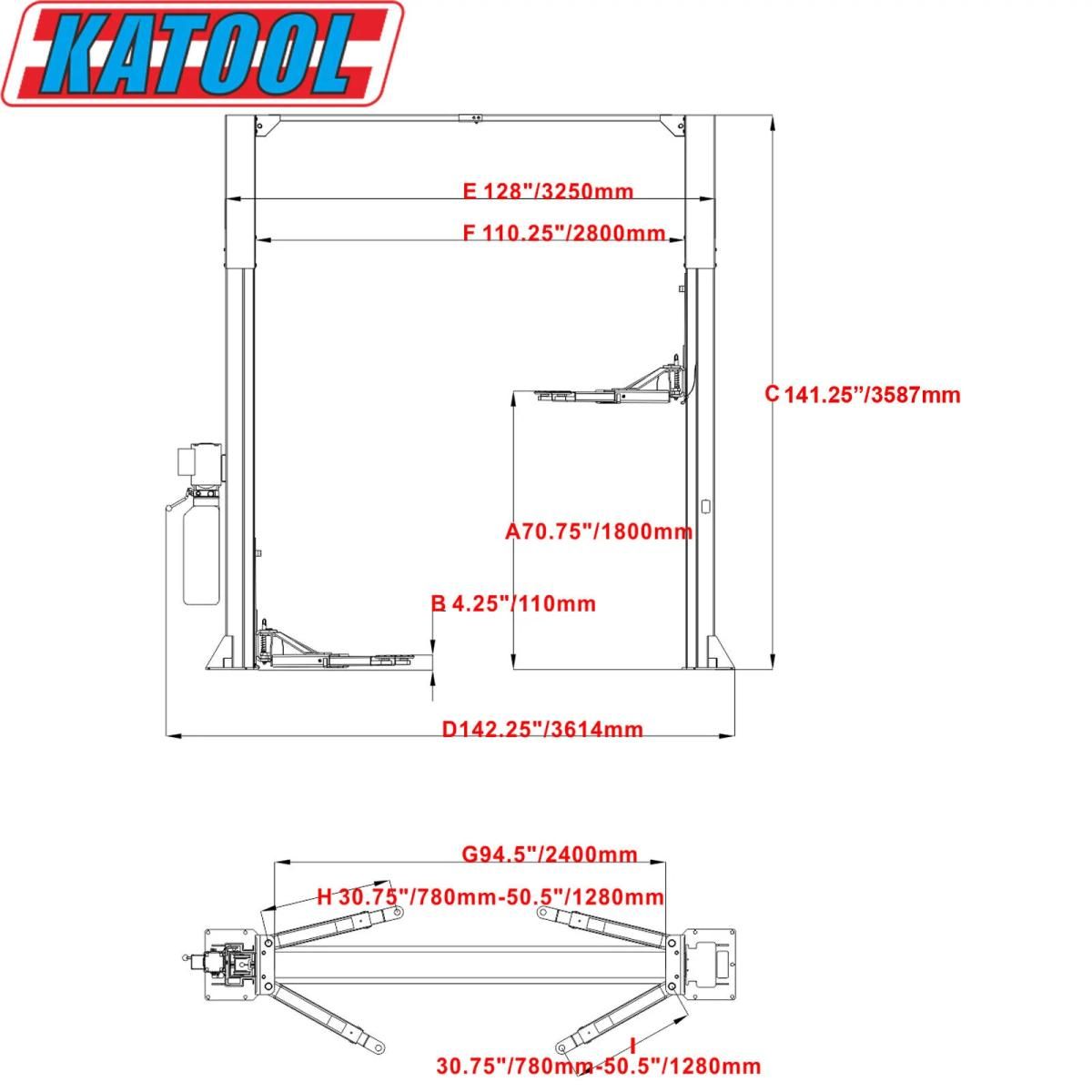

Official Specifications

Lifting Capacity: 11,000 lbs (5,000 kg)

Max Lifting Height: 70.75″ (1,800 mm)

Min Lowered Height: 4.25″ (110 mm)

Overall Height: 141.25″ (3,587 mm)

Overall Width: 142.25″ (3,614 mm)

Outside Column Width: 128″ (3,250 mm)

Inside Column Width: 110.25″ (2,800 mm)

Drive-Through Clearance: 94.5″ (2,400 mm)

Power Requirement: 220V (hardwired)

Total Weight: Approx. 620 kg (1,367 lbs)

Key Features

11,000 lb Capacity – Handles full-size trucks, SUVs, and heavy vehicles

Clear-Floor Design – No base plate; full under-vehicle access

Single-Point Lock Release – Safe, easy operation from one control

CE Certified – Meets European safety and quality standards

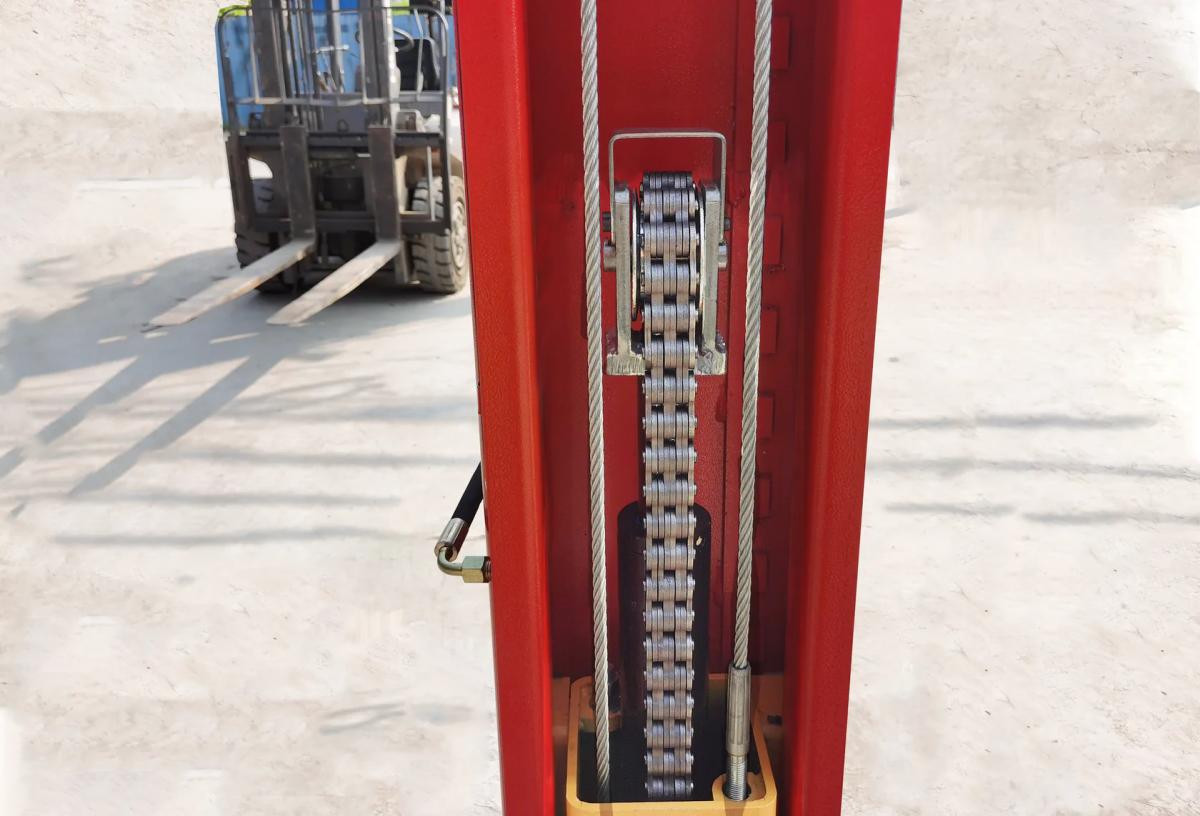

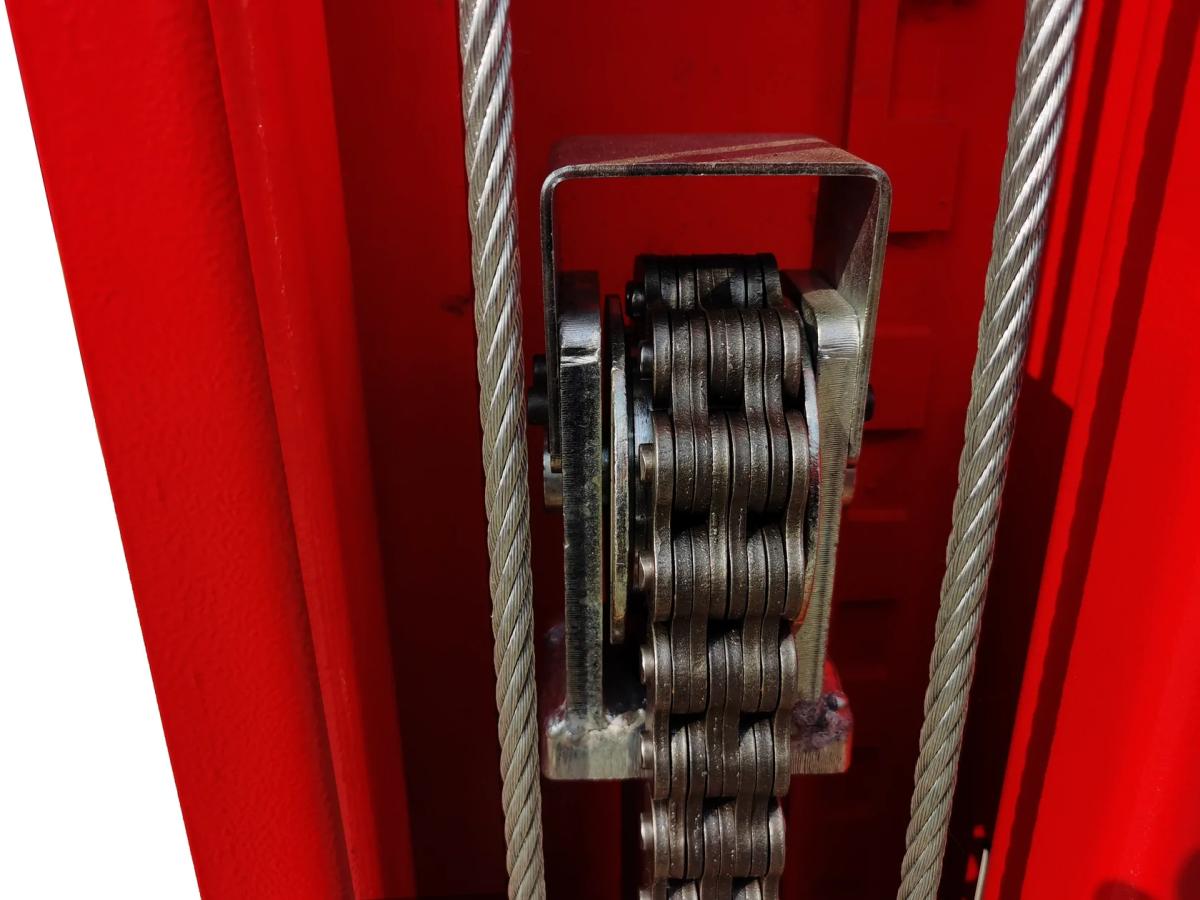

Dual Hydraulic Cylinders – Chain-driven for smooth, balanced lifting

Wide Drive-Through Clearance – Ideal for transmission and exhaust work

Advanced Safety Features

Overhead automatic shutoff bar

Multiple mechanical safety lock positions

Single-point controlled lowering system

Rubber door guards to protect vehicle doors

Feet protection safety rails at column bases

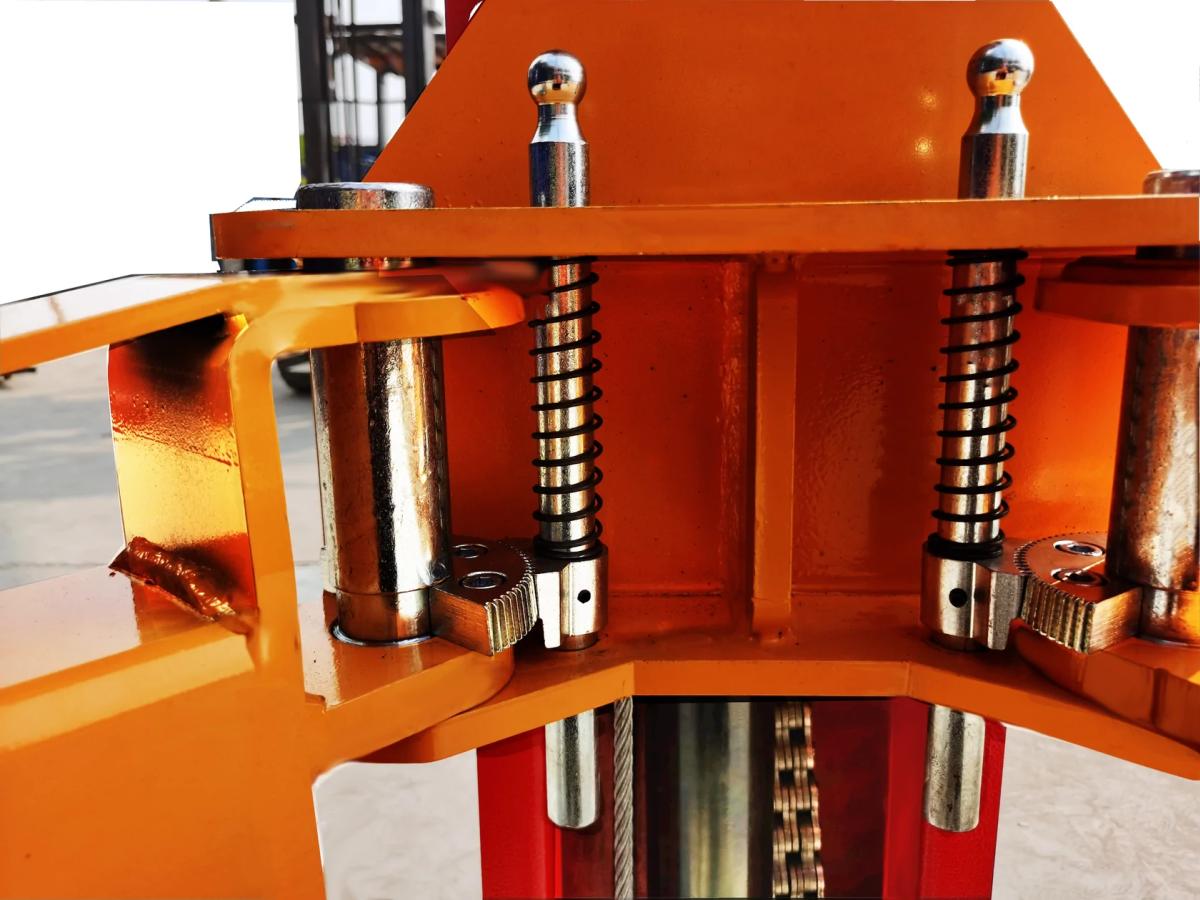

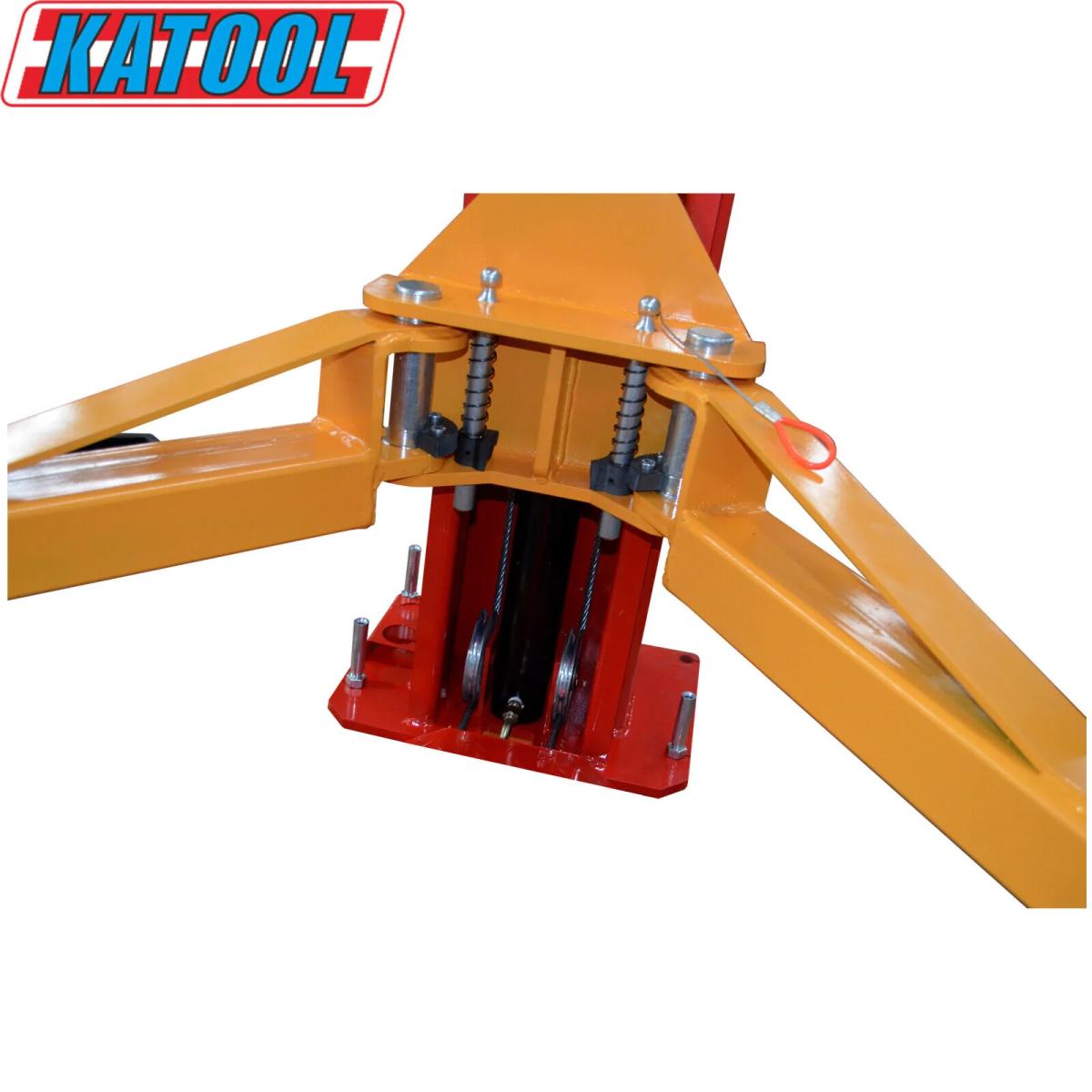

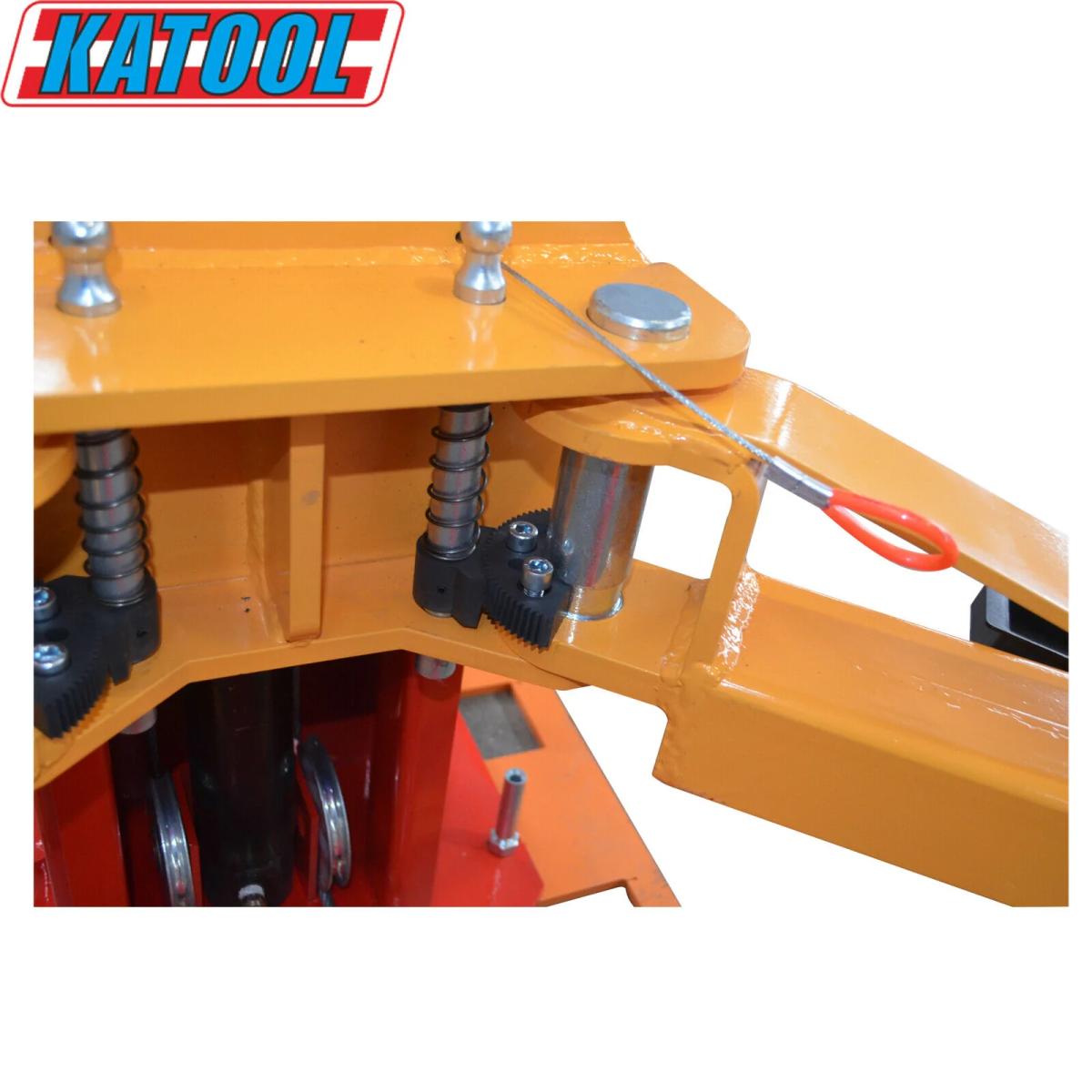

Automatic arm restraints during operation

Ideal Applications

Professional Auto Repair Shops – Daily heavy-duty use

Serious Home Mechanics – With proper garage specifications

Trucks & SUVs – Up to 11,000 lbs

Undercarriage Work – Exhaust, suspension, transmission

Brake & Tire Service – Full wheel access

CRITICAL Installation Requirements (READ BEFORE PURCHASE)

⚠ Minimum Ceiling Height: 12 ft (144″) REQUIRED
⚠ Floor Space: Minimum 142″ W × 160″ L
⚠ Concrete Floor: 5.9″ (150 mm) minimum, 3,000 PSI
⚠ Electrical: 220V hardwired installation ONLY
⚠ Professional Installation: STRONGLY RECOMMENDED

Failure to meet these requirements may void warranty and compromise safety.

Electrical Requirements

Voltage: 220V AC (NOT 110V)

Connection: Hardwired only

Circuit: Dedicated 20–30 amp circuit recommended

Electrician: Licensed professional required

Permit: May be required depending on location

What’s Included

Two main lift columns with hydraulic cylinders

Overhead clear-floor beam assembly

220V hydraulic power unit

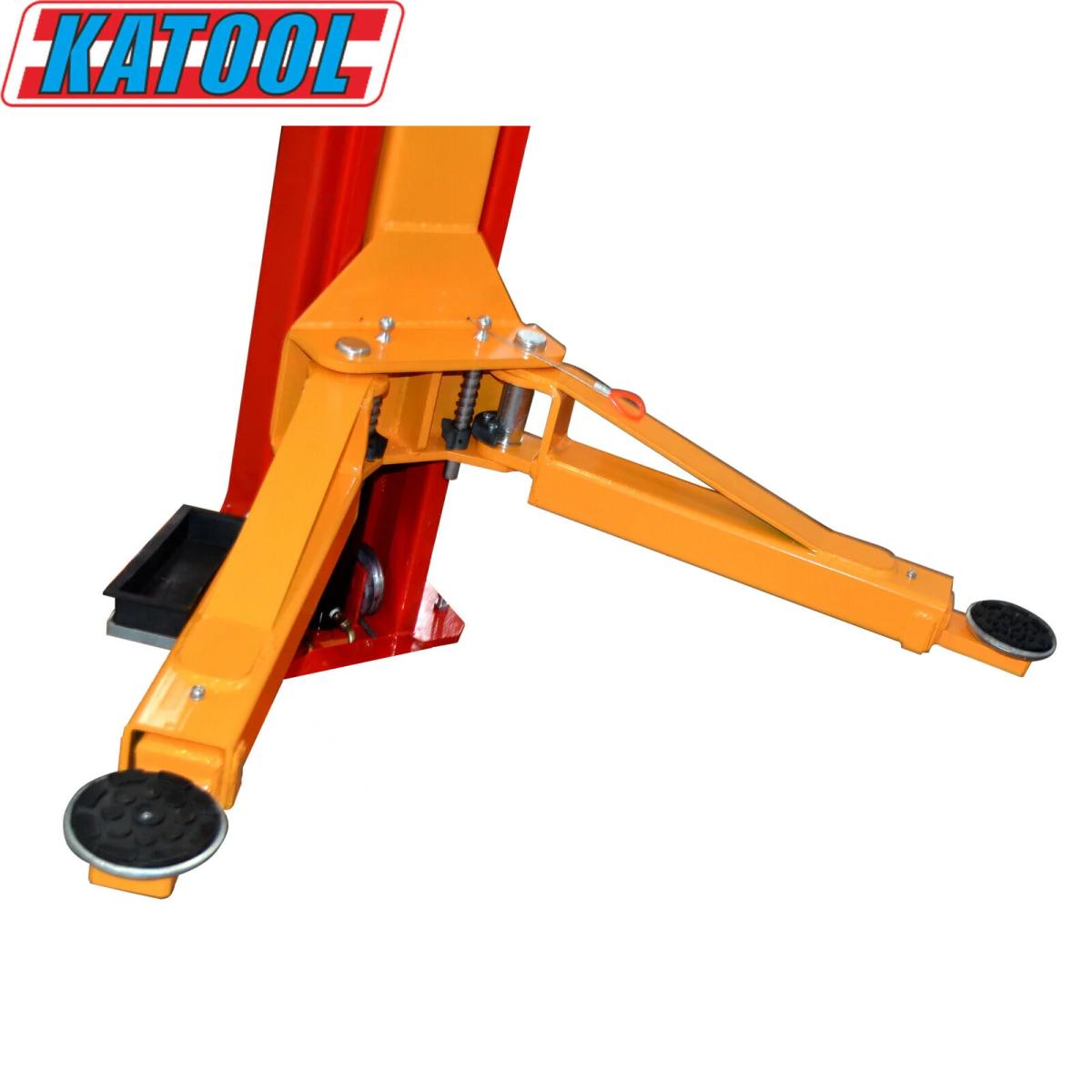

Four lift arms with adjustable adapters

Rubber lift pads (4)

FREE pad extensions

Safety lock system (multiple positions)

Rubber door guards

Feet protection safety rails

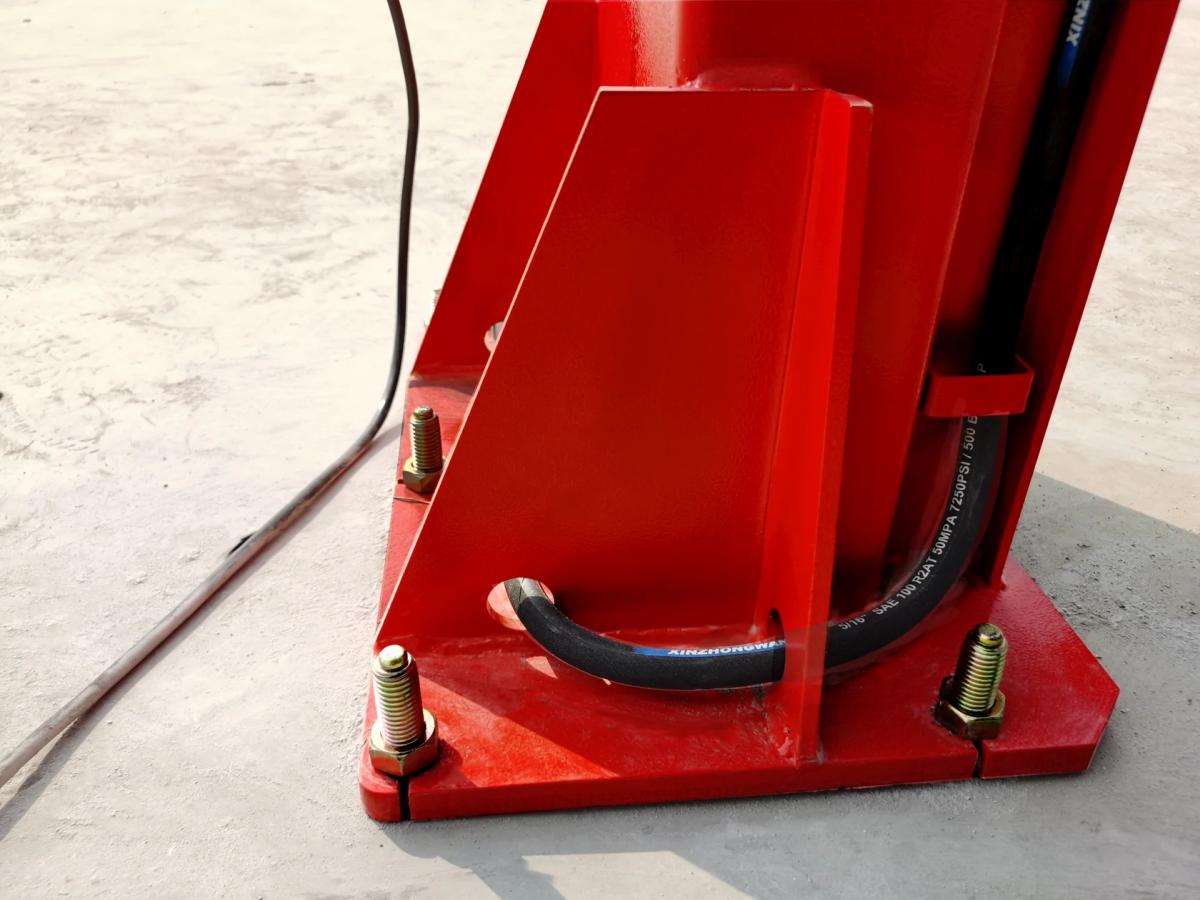

Anchor bolts & mounting hardware

Installation manual with diagrams

12-Month Manufacturer Warranty

Installation Overview

Verify ceiling height, floor thickness, and electrical supply

Mark anchor points per installation manual

Drill concrete and install anchor bolts

Assemble columns and overhead beam (2–3 people required)

Install hydraulic system and power unit

Licensed electrician hardwires 220V connection

Test safety systems before first use

Typical Install Time: 4–6 hours (experienced team)

Warranty Coverage (12 Months)

Structural components

Hydraulic components

Electrical components

Materials and workmanship defects

✔ Proper installation and maintenance required
✔ Keep all installation and warranty records

Maintenance Schedule

Daily: Visual inspection before use

Weekly: Check locks, arm restraints, pads

Monthly: Inspect hydraulic fluid and leaks

Quarterly: Lubricate moving parts

Annually: Professional inspection recommended

Vehicle Compatibility

Compatible With:

Sedans, coupes, wagons

SUVs & crossovers

Pickup trucks (½-ton class)

Low-profile sports cars

NOT Suitable For:

1-ton trucks

Commercial vehicles

Any vehicle over 11,000 lbs

Important Warnings

❌ Not for low-ceiling garages
❌ Not plug-and-play
❌ Do not exceed rated capacity
❌ Do not lift without correct pad placement
❌ Regular maintenance required
