TYPHON NAGA 4.0 (4T) | Yanmar 24.4hp | AC Cabin | ISO/SAE Switch | Metal Tracks.

Overview

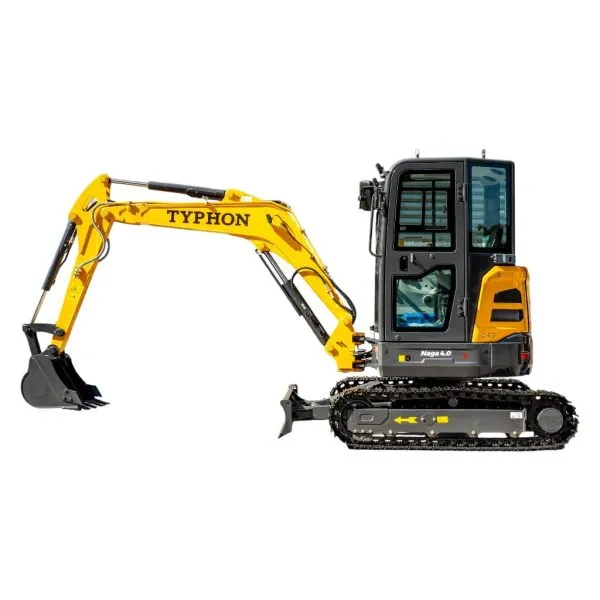

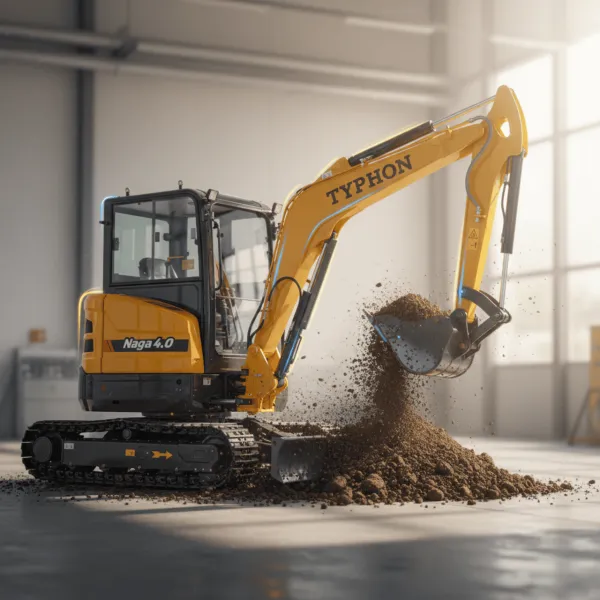

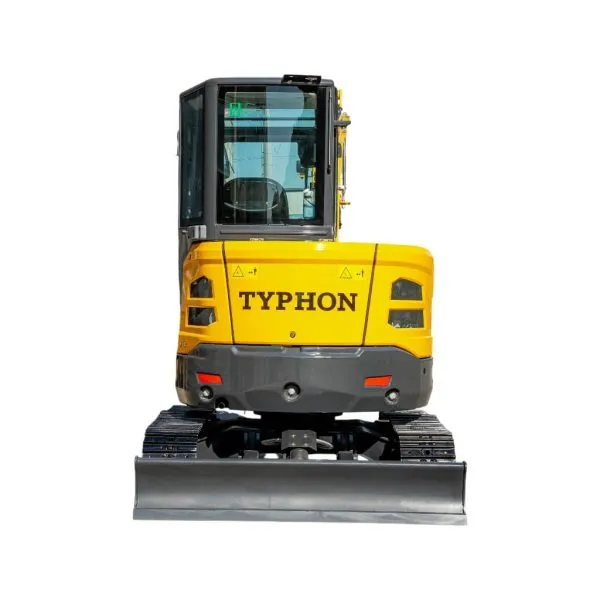

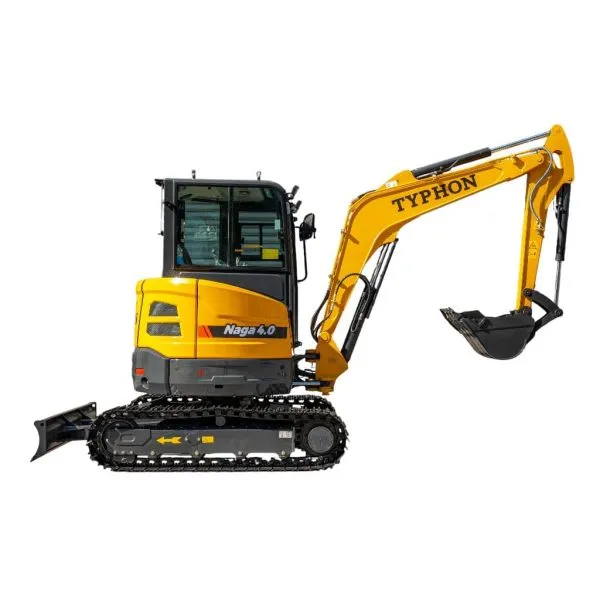

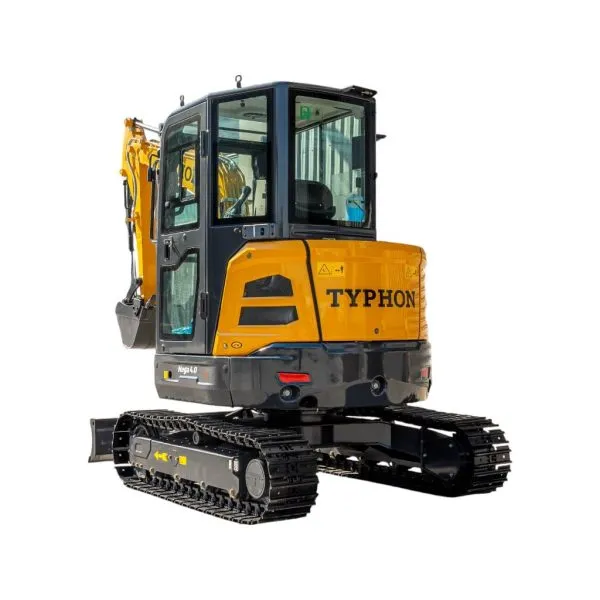

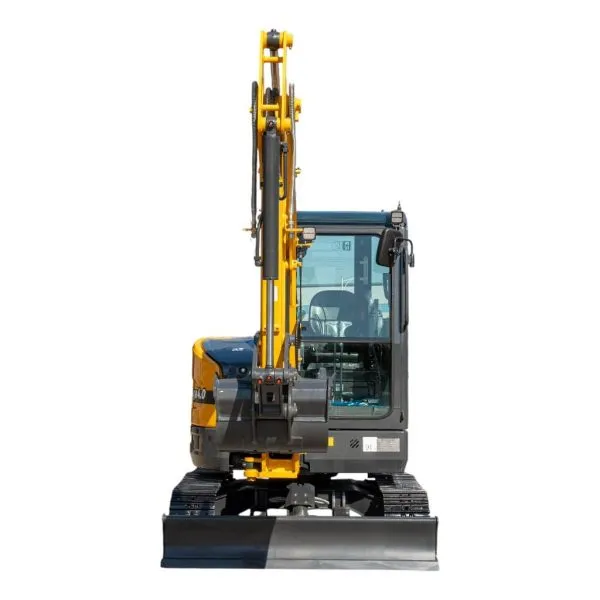

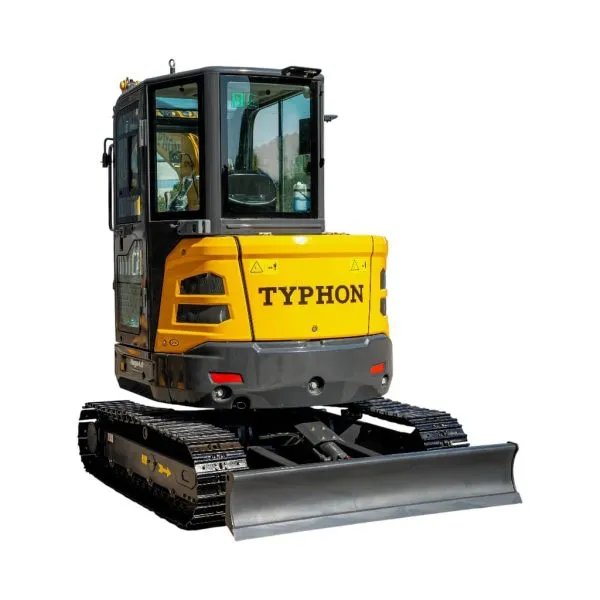

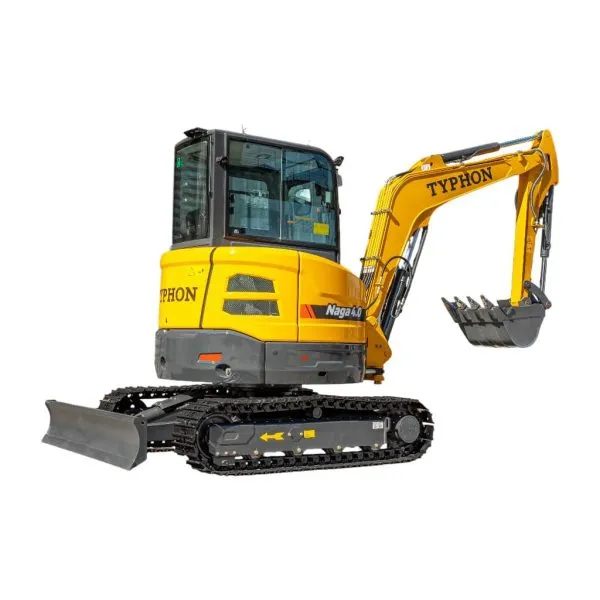

The TYPHON NAGA 4.0 Mini Excavator is a powerful 4-ton compact machine built for urban construction and confined job sites. Its zero-tail swing design, 360° rotation, and compact dimensions allow safe and efficient operation in tight spaces while maintaining excellent stability.

Powered by the reliable Yanmar 3TNV88F diesel engine, the NAGA 4.0 delivers strong breakout force, smooth hydraulic performance, and excellent fuel efficiency while meeting EPA Tier 4 Final and EU Stage V emissions standards.

Specifications

• Operating Weight: 4 Ton

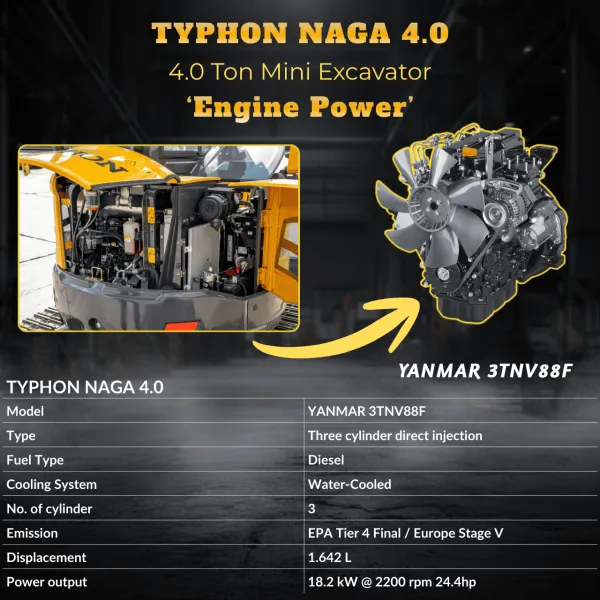

• Engine: Yanmar 3TNV88F Diesel
• Engine Power: 24.4 HP @ 2200 rpm
• Bucket Capacity: 0.12 m³
• Bucket Width: 650 mm
• Bucket Digging Force: 30.4 kN
• Arm Digging Force: 18.2 kN
• Tail Swing Radius: 860 mm
• Travel Speed: 2.4 – 4.4 km/h
• Grade Ability: 30°
• Fuel Tank Capacity: 50 L
• Hydraulic Oil Tank: 40 L

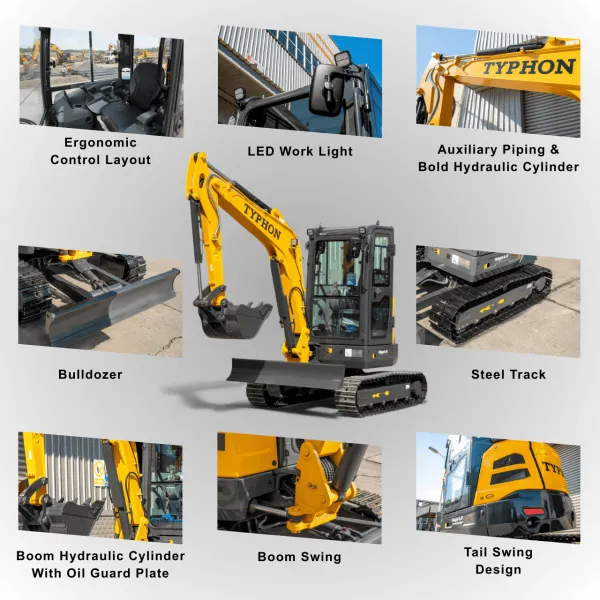

Key Features

• Yanmar 3-Cylinder Diesel Engine
• Zero Tail Swing Design for tight spaces
• 360° Upper Structure Rotation

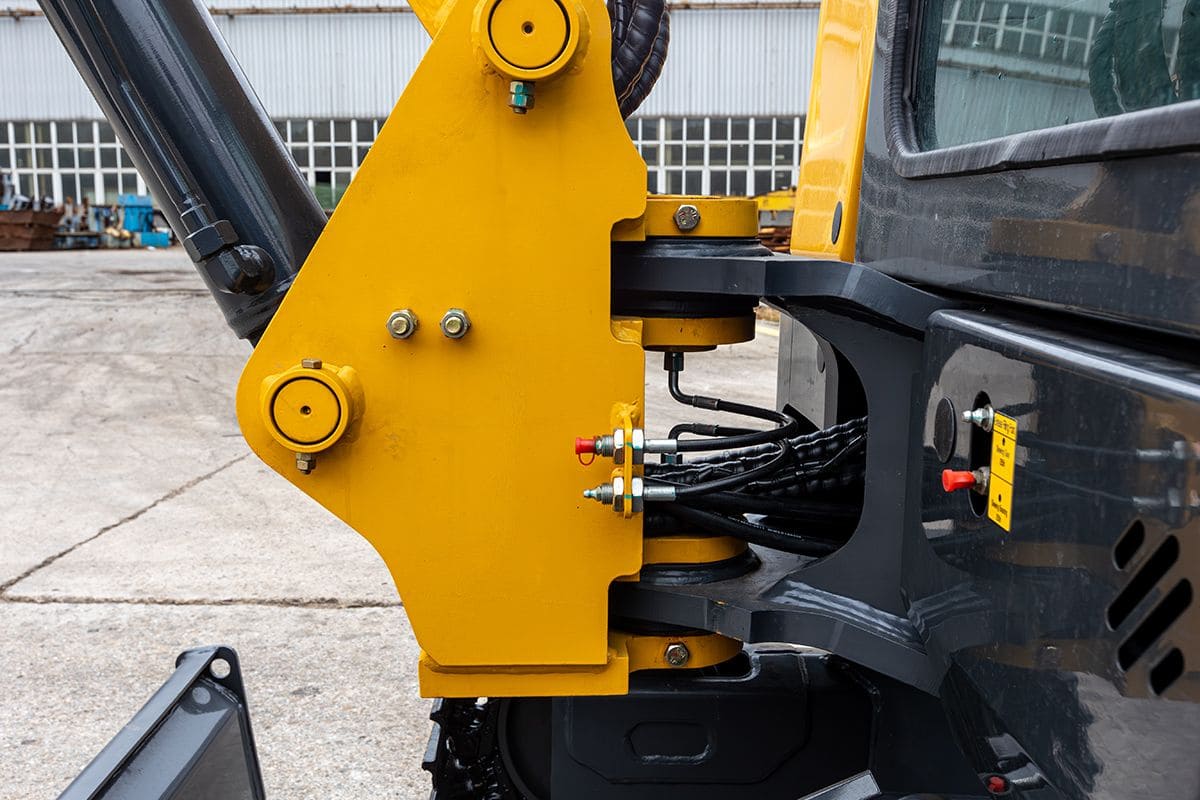

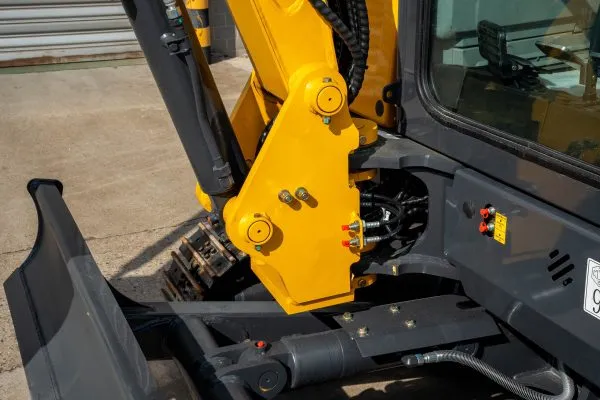

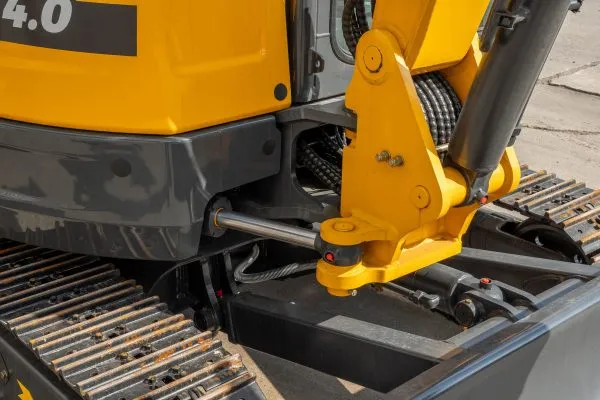

• Boom Swing Function (55° Left / 55° Right)
• Two-Speed Travel (2.4 – 4.4 km/h)
• High digging force for tough soil conditions
• Auxiliary hydraulic circuit for attachments

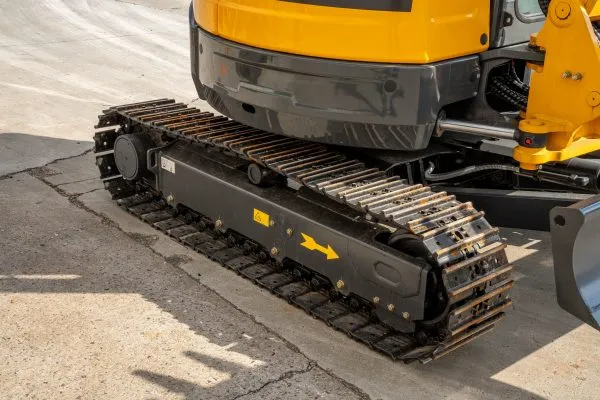

• Durable metal tracks for demanding terrain

Operator Comfort

• ISO / SAE selectable joystick controls
• 7-inch touchscreen digital display
• Ergonomic suspension seat
• LED work lights for improved visibility
• Optional enclosed cabin with A/C & heater

Included Equipment

• Standard digging bucket
• Toolbox
• Fire extinguisher
• Emergency window breaker & seatbelt cutter
• Digital operation manual

The TYPHON NAGA 4.0 combines compact design, powerful digging performance, and advanced operator features, making it ideal for trenching, foundation work, landscaping, and urban construction projects. 🚜
