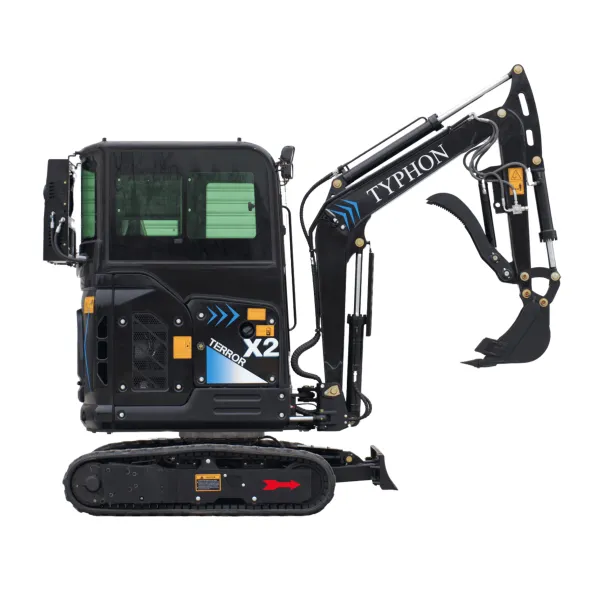

TYPHON TERROR X2 MAX (2.7T) | Yanmar Power | AC Cabin | Pilot Controls.

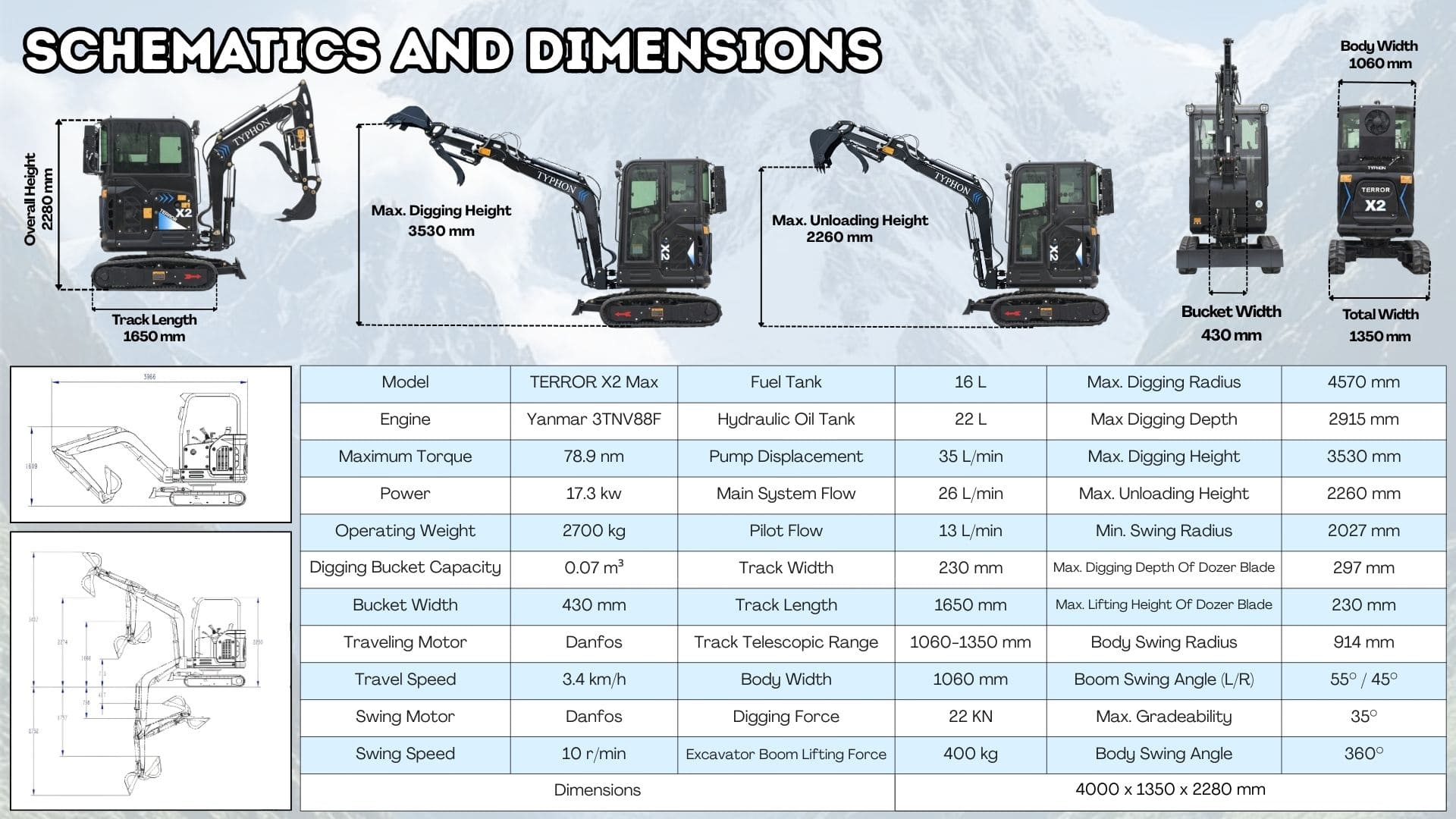

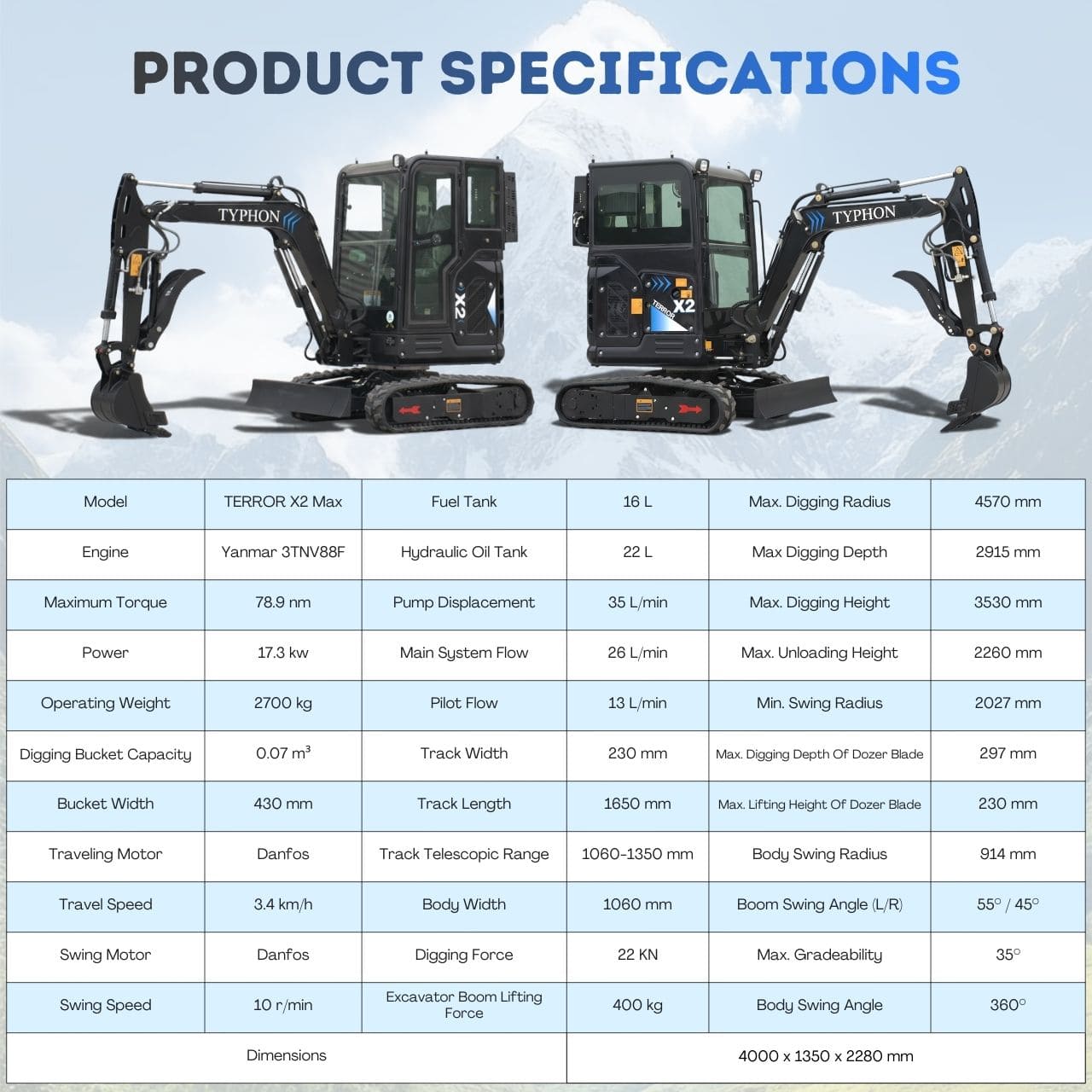

Specifications

• Operating Weight: 2.7 Ton

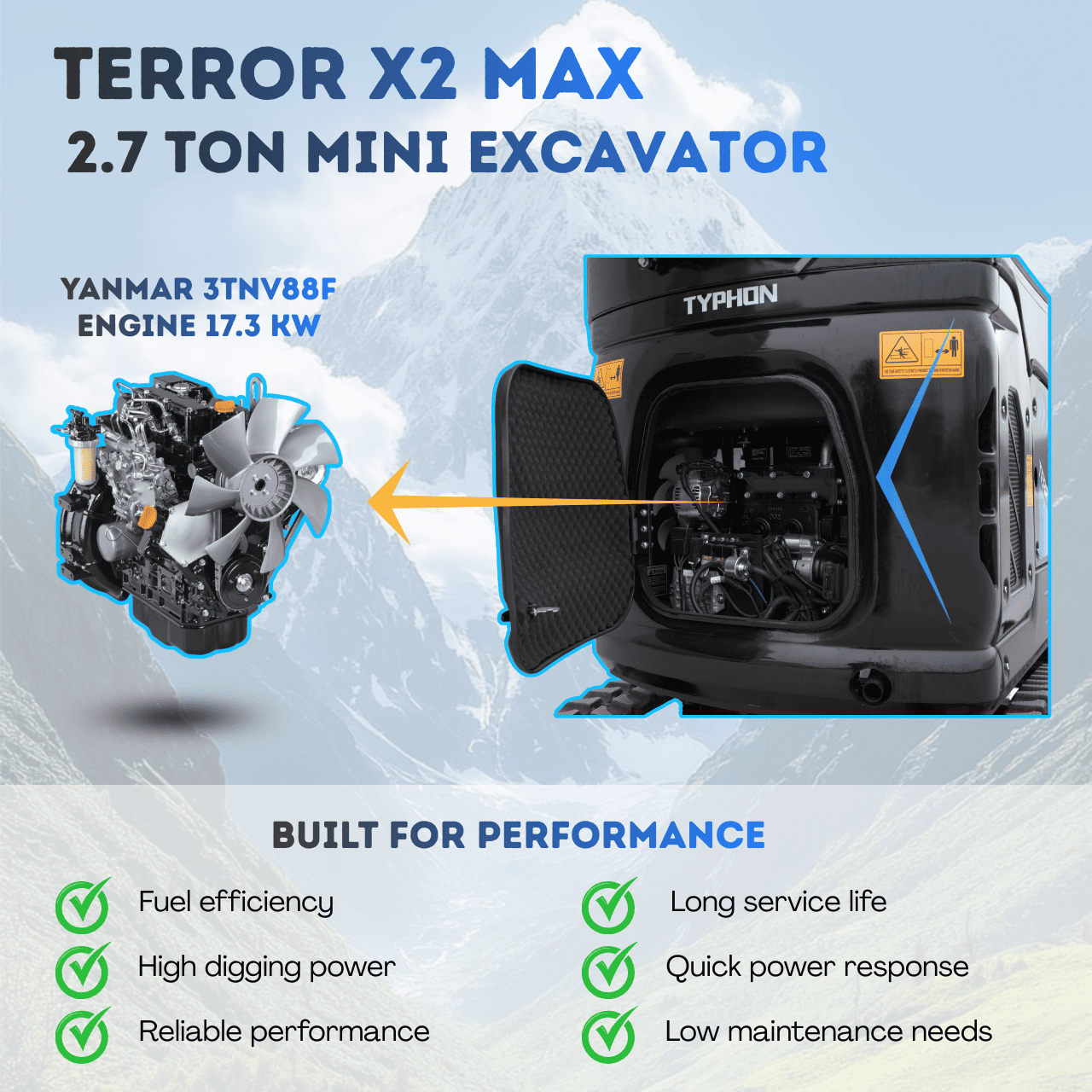

• Engine: Yanmar 3TNV88F Diesel
• Engine Power: 23.2 HP @ 2200 rpm
• Maximum Digging Depth: 2,915 mm
• Maximum Digging Radius: 4,570 mm
• Maximum Dump Height: 2,260 mm
• Bucket Capacity: 0.07 m³
• Bucket Width: 430 mm
• Machine Width: 1,060 mm

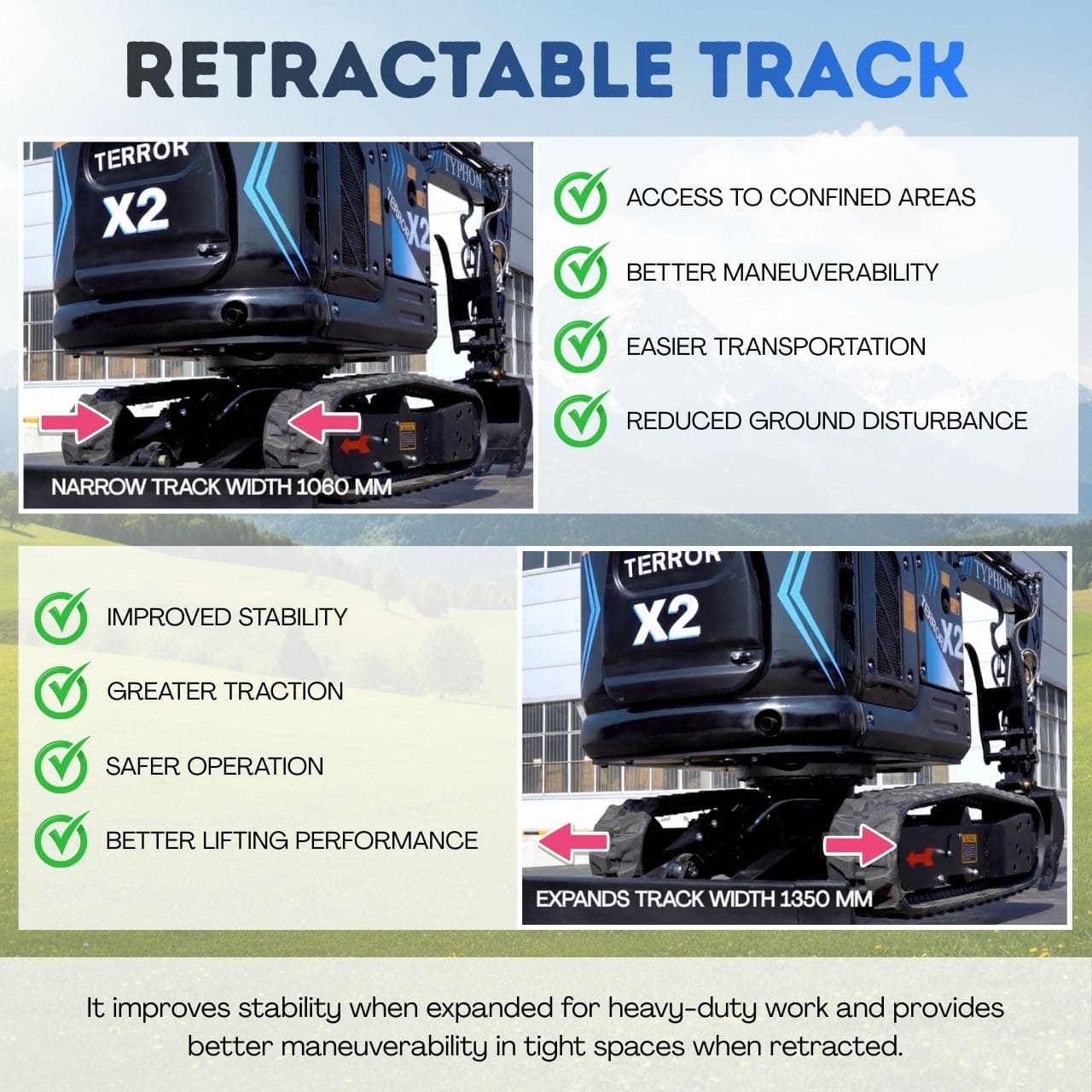

• Undercarriage: Retractable (1,060–1,350 mm)
• Travel Speed: 3.4 km/h
• Rotation: 360°

Overview

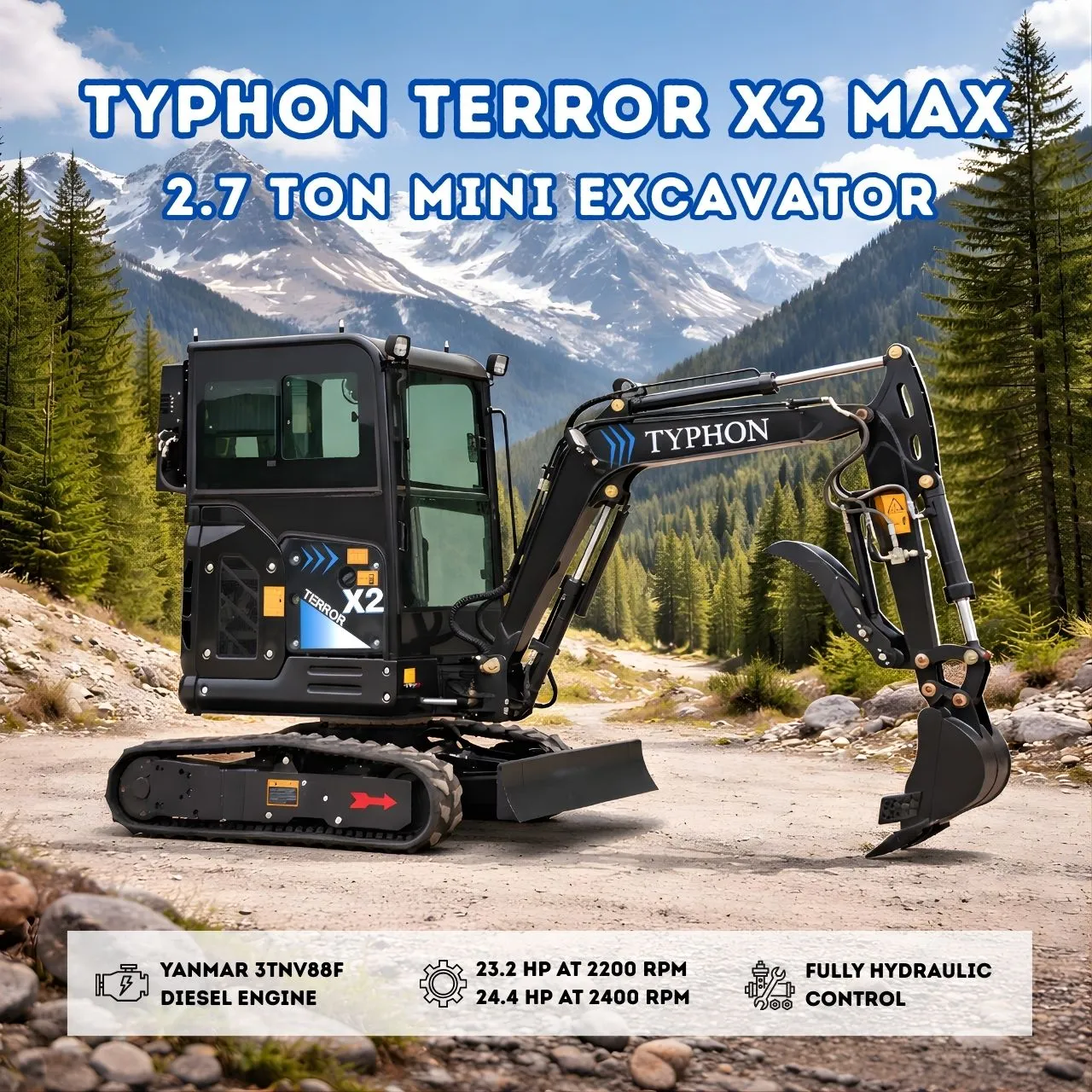

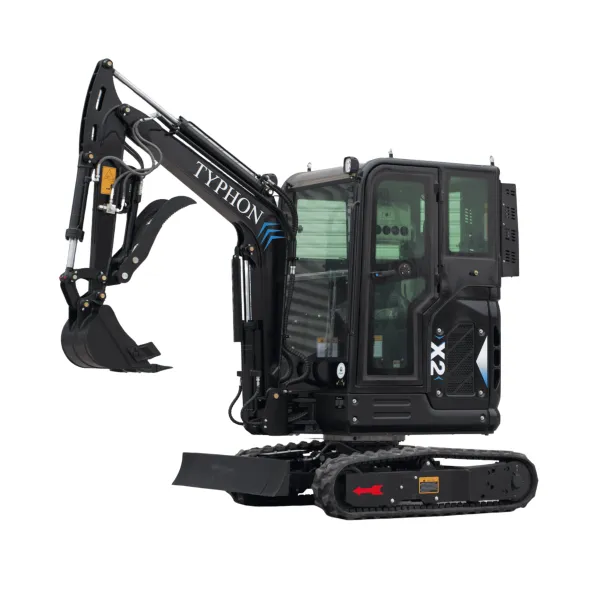

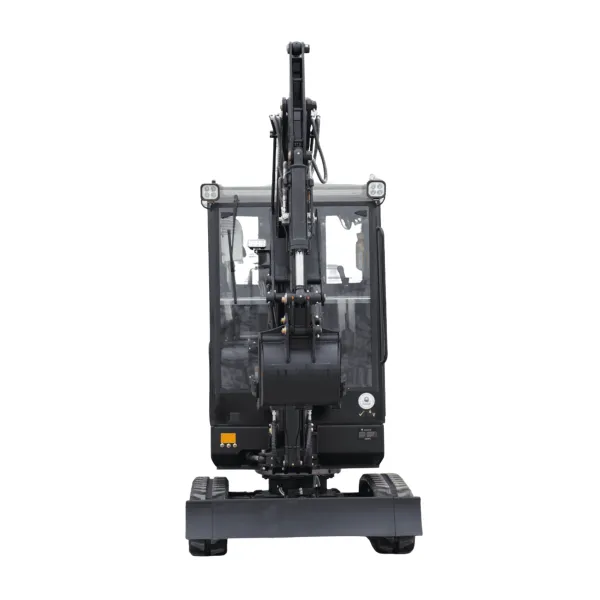

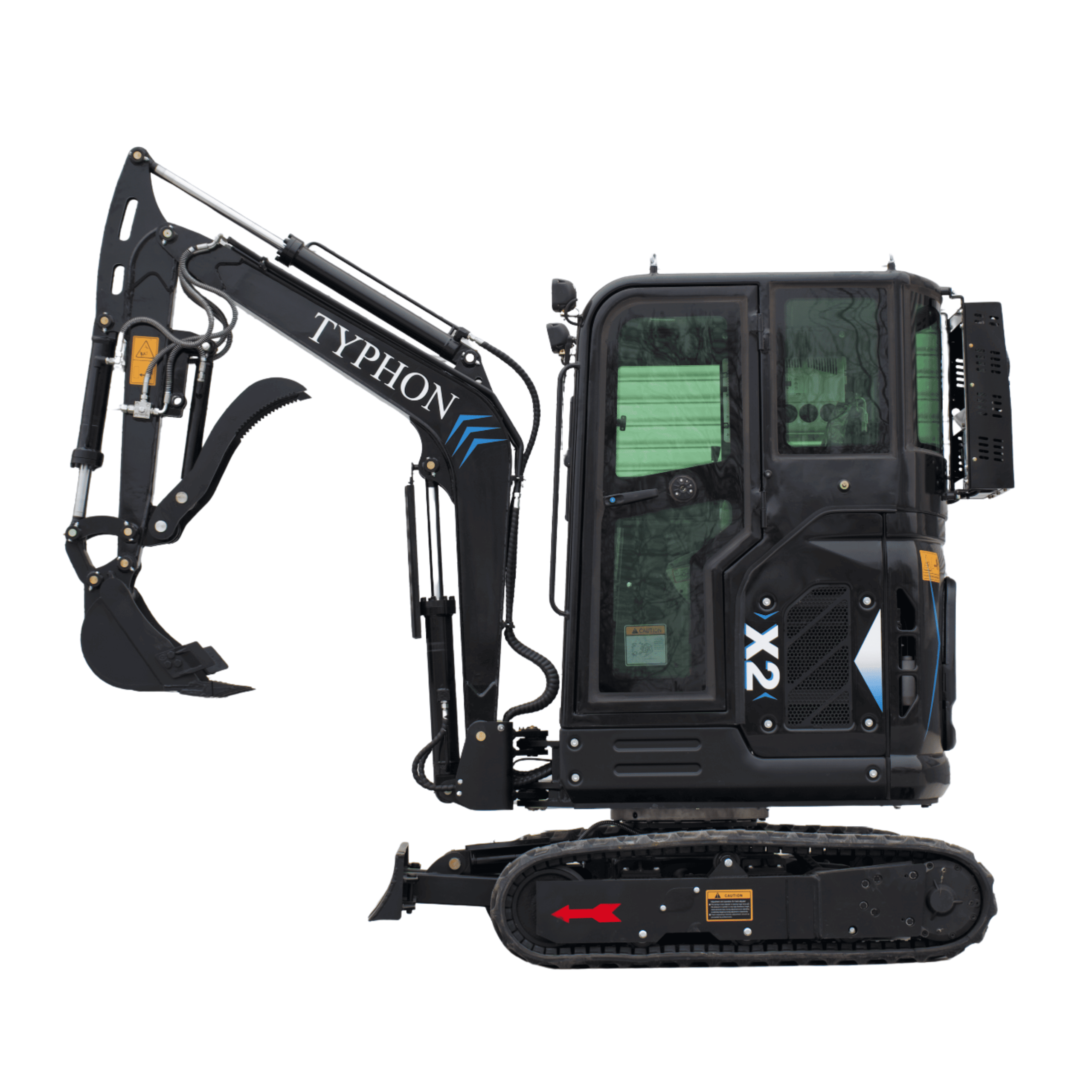

The TYPHON TERROR X2 MAX Mini Excavator is a compact and powerful 2.7-ton machine designed for precision work in tight spaces. Powered by the reliable Yanmar 3TNV88F diesel engine, it delivers strong digging performance, smooth hydraulic operation, and excellent fuel efficiency.

Its retractable undercarriage and narrow 1,060 mm width allow easy access to confined job sites while maintaining excellent stability during operation.

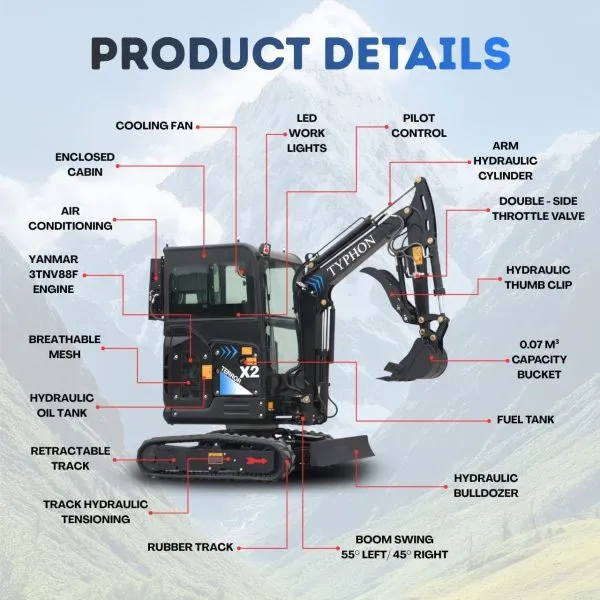

Key Features

• Yanmar 3-Cylinder Diesel Engine
• Retractable Undercarriage for narrow access

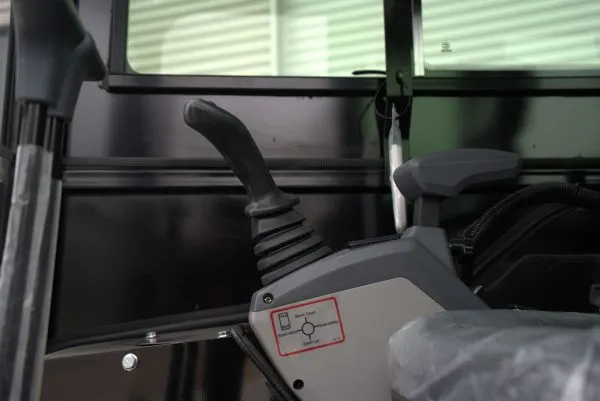

• Pilot Hydraulic Control System for smooth operation
• Boom Swing Function (55° Left / 45° Right)

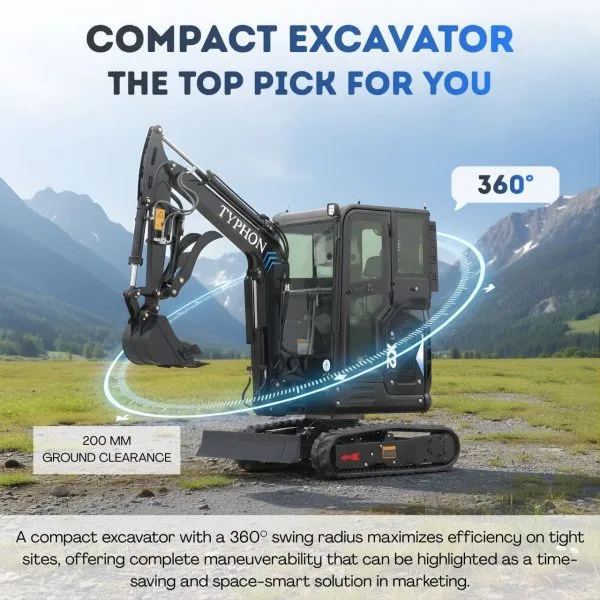

• 360° Full Rotation for flexible digging angles
• Durable rubber tracks for stability and traction
• Integrated Dozer Blade for grading and stabilization

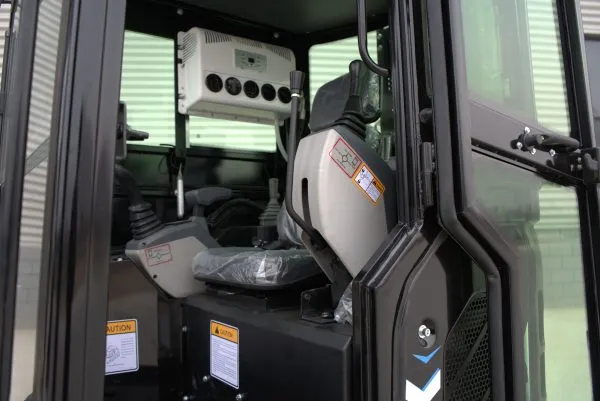

• Enclosed operator cabin with A/C and heater
• LED work lights for low-light environments

Included Equipment

• Standard digging bucket
• Hydraulic thumb clip
• Hydraulic oil cooler
• Toolbox
• Enclosed cabin
• Digital operation manual

The TYPHON TERROR X2 MAX combines compact size, reliable diesel power, and versatile performance, making it ideal for trenching, landscaping, drainage work, foundations, and small construction projects. 🚜
